Template Components

FlexDoc templates can be considered as a sort of computer programs, containing instructions interpreted by FlexDoc Generator. Such instructions are specified in the form of template components.

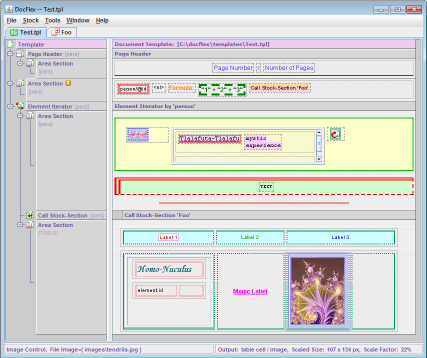

Template components are the building blocks of templates and visualized in FlexDoc Template Designer. Almost everything you can see on the following screenshot depicts some template components.

Component Properties

The interpretations of template components as well as their appearance in the Template Designer can be adjusted with component properties.

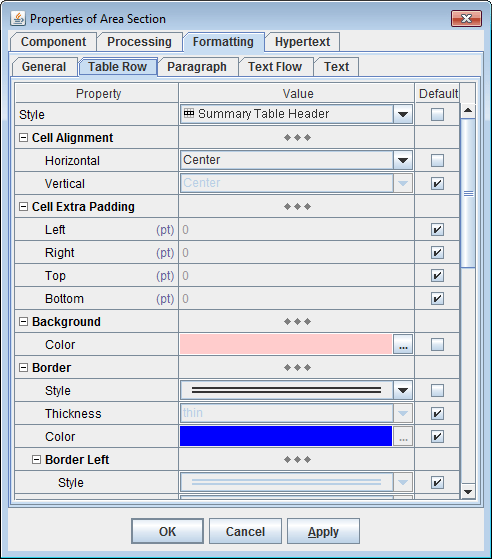

Most of the component properties are specified statically in templates using special Property Inspectors:

Some of the component properties, however, can be calculated dynamically depending on the data being processed. Such dynamic properties are specified using FlexQuery-expressions.

FlexQuery Expression Editors and Assistant Dialog

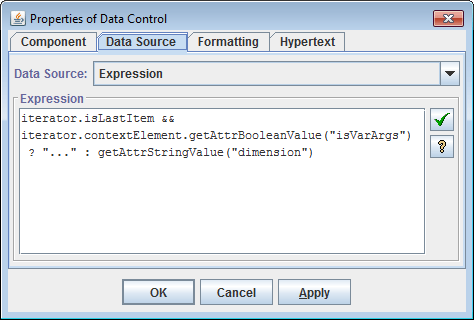

For programming convenience, all input fields for FlexQuery-expressions in FlexDoc Template Designer are implemented with the special Expression Editors supplied with the expression quick-check button:

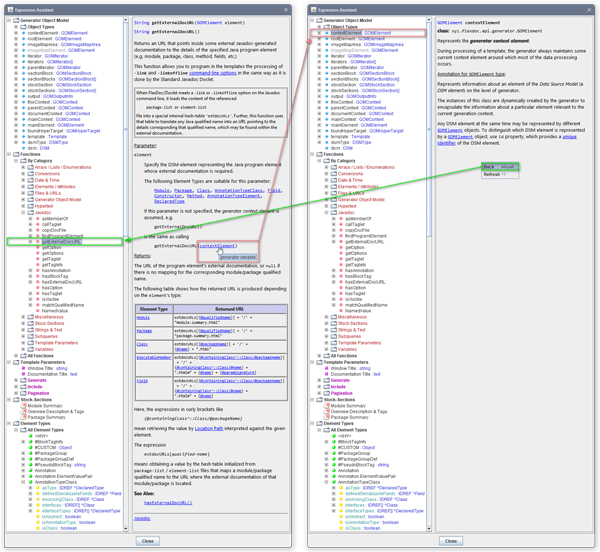

and the button invoking the FlexQuery Expression Assistant Dialog:

which provides a lot of information about everything that can be used in the expression: all available utility functions, generator variables, template parameters, XML-elements and XML-attributes. This information is always up-to-date since it is obtained not from the static help files but collected dynamically from all available resources. Here is also possible to select the necessary identifier and insert it directly into the edited expression.

Location Path Chooser

Location Paths, which are XPath-like expressions used in many settings within templates, can be selected using the special Location Path Chooser dialog:

Template Parameters

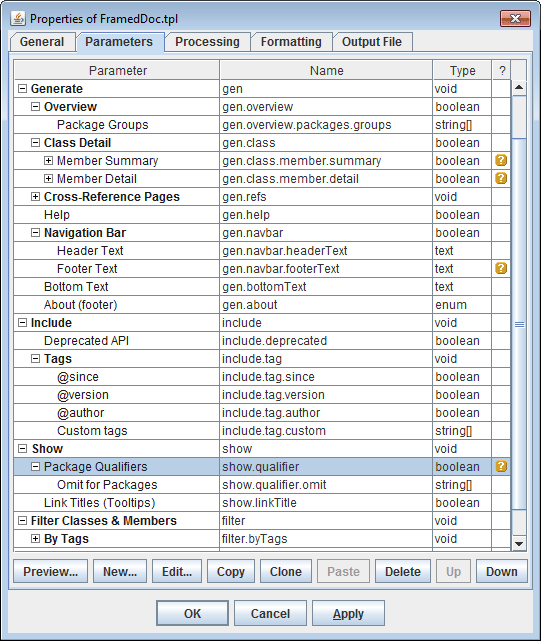

FlexDoc provides elaborated methods to handle template parameters. The following parameter types are supported: In any template, it is possible to declare a list of template parameters:

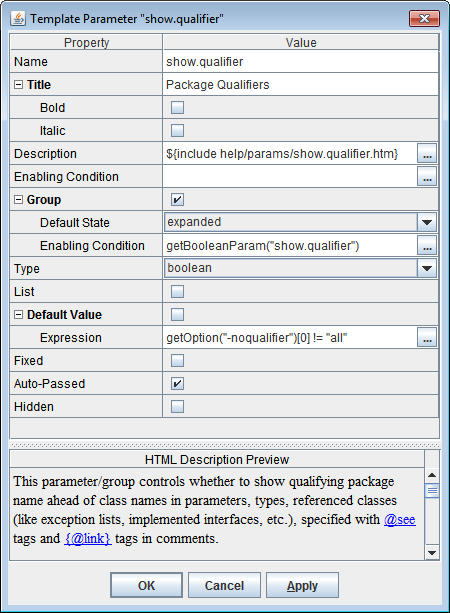

Each parameter declaration consists of
  1. parameter name
  2. description
  3. data type
  4. for the enum-parameter, the list of the possible values
  5. default value
  6. other settings

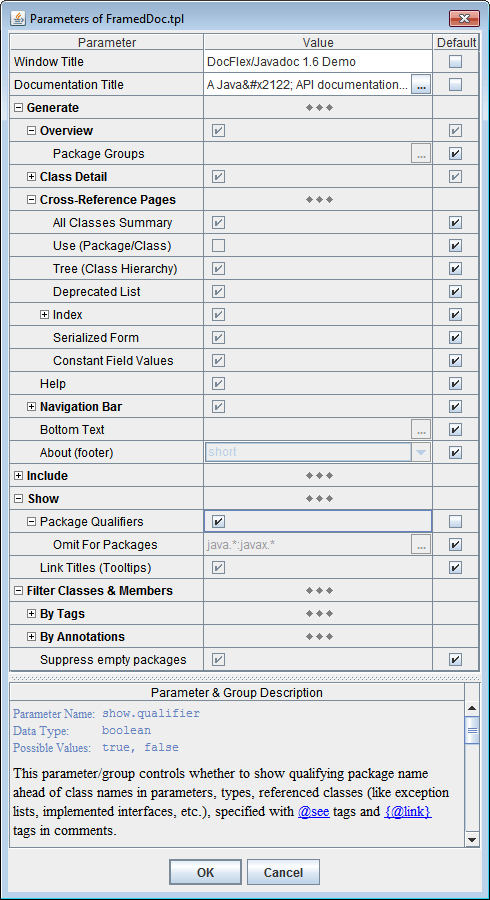

When starting the generator, the template parameters can be either specified in the Template Parameter Inspector dialog:

or passed programmatically, using FlexDoc API. Within the template, the passed parameters can be accessed using FlexQuery-expressions.

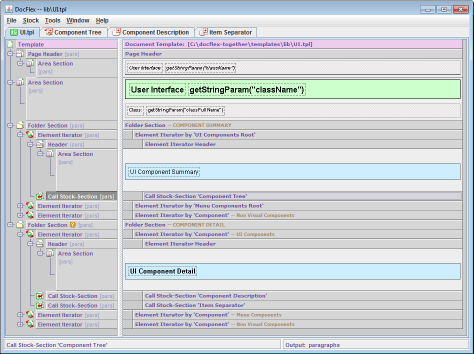

Stock-Sections

The small repeatable fragments of a template can be designed only once and, then, be put into the special template part called Template Stock in the form of stock-sections.

Such stock-sections can be called many times from the different template's locations and even from within themselves.

Each stock-section call produces the same fragment of the output document as if the stock-section's content was in the place of its call. Stock-sections can be considered as an equivalent of procedures in a typical programming language.

For more information, see documentation: Template Components, Stock-Sections, Call Stock-Section.

Calling Subtemplates

FlexDoc allows you to call from one templates another templates (subtemplates). Each called subtemplate can produce either the separate document or a fragment of the common document being generated by the calling one. This makes possible For more details, see documentation: Template Components | Call Template.
