FlexDoc/XML - Features

  1. Template-driven architecture
  2. Processing of XML data sources
  3. Formatting
  4. Insertion of images
  5. Hypertext
  6. Output formats
  7. Generator GUI
  8. Ready template applications
  9. Diagramming Plugins
  10. Other Integrations

Template-driven architecture

Component Diagram

Here is a component diagram that depicts the functional structure of FlexDoc/XML:

The diagram has been created with Eclipse Papyrus UML tool.

Documentation Generators as Template Sets

Actual doc-generators are created as sets of special templates, executed by the template processor. The templates are effectively programs that implement the entire generation of the documentation output.

Templates are made of
  • Template components, which are functional programming elements that both generate single pieces of output and can be visualized graphically in a form resembling the output they generate. Template components are assigned with various properties that control their interpretation as well as specify the formatting of the output they produce. Some of such properties are static. Others are calculated dynamically by small scripts (with Java-like syntax) called FlexQuery-expressions, which provide access to lots of specialized functions, template parameters and properties of Generator Object Model.
  • Formatting styles, which are named bundles of formatting properties that as a whole can be assigned to a template component. They can be used to unify output formatting across all template set, as implicit parameters (by overriding in the calls of subtemplates) and to program the generation of named CSS rules (which allows styling the result documentation with custom CSS stylesheets).
  • Template parameters, which are used to pass to the template set various data and settings as well as for internal communication between subtemplates.
Note: The word «template» is not exactly suitable to describe what this everything actually is. FlexDoc/XML templates are rather a mixture of what is traditionally called «templates» and «scripts». For more details, please see: FlexDoc.XYZ | What are Templates?

There are basically four kinds of templates (or rather roles which they can play):

  1. Document template that generates the whole document (e.g. an HTML file).
  2. Fragment template that generates some parts/fragments of the documents.
  3. Procedure template, which generates nothing by itself, but may be used for some preparation (e.g. loading referenced XML files, creating element maps, etc.) or to call the document templates (particularly when the output documentation has no obvious root).
  4. Main template, which starts the generation of the entire documentation.
All those templates may call each other (and even in different roles).

Main templates are those specified to the generator (only one at a time). A template set may include several main templates to generate different kinds of documentation (e.g. single file, framed multi-file, etc.)

Template Designer

Although templates are stored as plain-text files (with an XML-like format), they are not supposed for editing manually. Rather, a special graphic Template Designer must be used, which visualizes templates in the form of components they are made of.

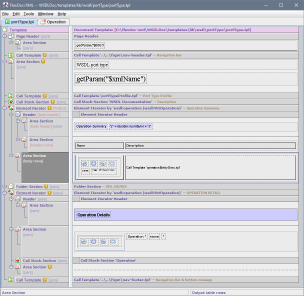

This screenshot shows the “portType.tpl” template (from WSDLDoc template set) open in the Template Designer (click to see in full size).

The left pane represents the structural components called sections, which are responsible for most of data processing as well as the generation of integral features of the output (such as paragraphs, tables, lists etc).

The right pane represents the components called controls, which generate particular content details (e.g. text, images, table cells etc). Controls are visualized in a form resembling the output they generate.

Template Processor (Generator)

This is the most crucial and sophisticated part of the whole FlexDoc/XML system. It takes on input:
  1. The specified XML files, which constitute the data source.
  2. The main template (the entry point of the template set).
  3. The XML Type associated with the template set. It provides the structure / data type information about the input XML files.
  4. XML catalogs that are used to resolve XML file references.
The template interpreter uses template components and their properties as instructions and generates the output documentation by them (from the data found in the XML files). On the way, it may load more XML files referenced from those being processed.

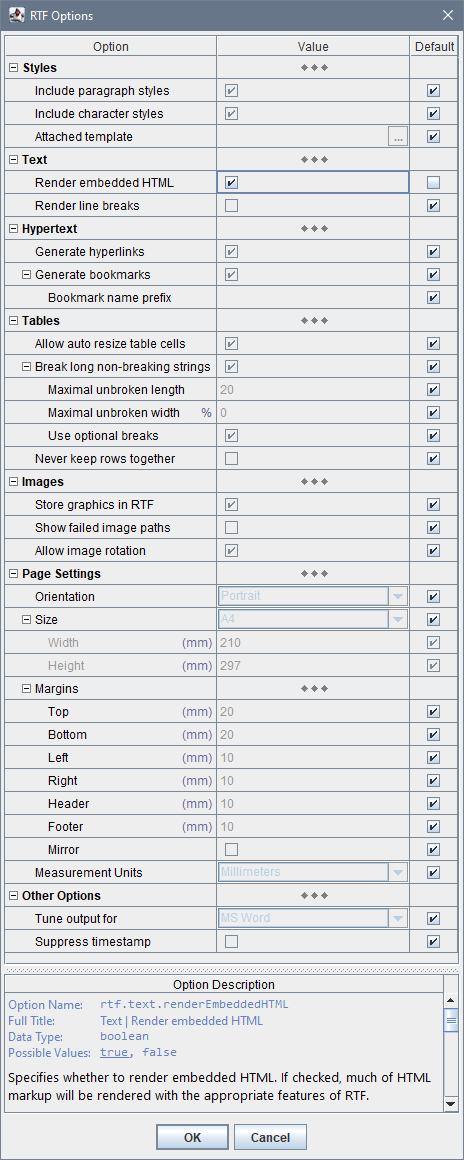

The output generator is actually an interchangeable part, which has separate implementations for each supported output format. What particular output format will be used is specified as the option.

Together the template interpreter and all output generators represent a single functional unit, which is called also “FlexDoc/XML Generator” (or simply generator). It is run from the Java command line as a separate Java application and controlled by lots of options.

Alternatively, most of these settings can be specified in a Generator GUI interactively. Its main dialog is shown on the following screenshot:

For further details, please see: FlexDoc/XML | Documentation | Running Generator

Template Parameters

Since all the content and formatting of the generated documentation is programmed entirely in templates, what in ordinary doc-generators are command-line options now simply become template parameters.

The parameters are defined and accessed in templates to control dynamic properties of template components (or pass data to them). They may be of various data types including list parameters, which allow passing a vector of values associated with the same parameter name.

Because template parameters are easy to introduce and support in templates (most of time actually takes writing their descriptions), a large template application (like XSDDoc) may have hundreds of parameters. This allows adjusting the generated documentation within a wide range of possibilities without changing the templates.

However, it also creates two problems:

  1. How to find and set a necessary parameter quickly?
  2. How to avoid settings lots of related parameters when just a few features need to be changed?

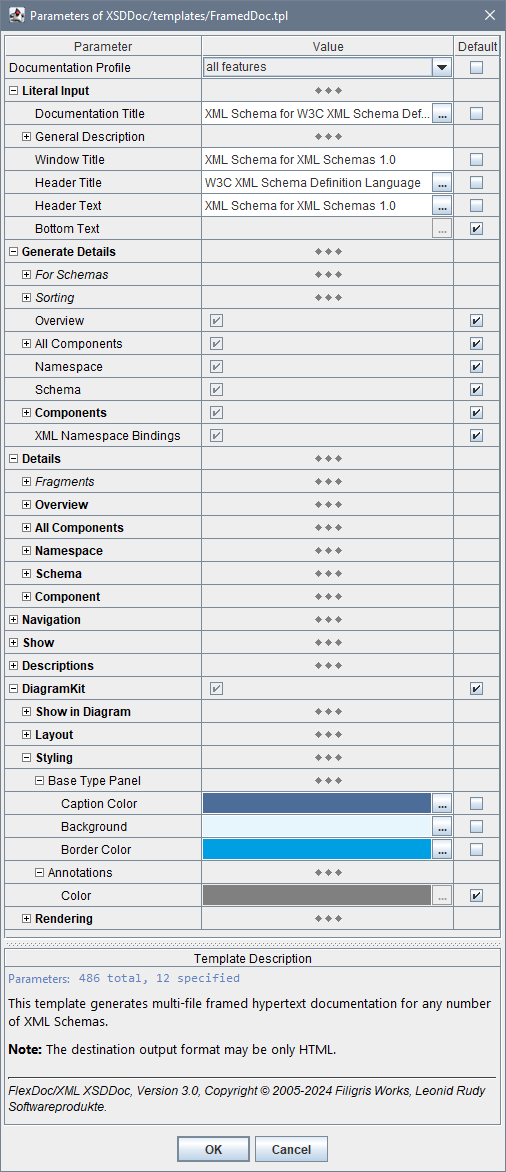

Those problems are solved as follows: On the left screenshot you can see how parameters are defined in a template. On the right is the Parameter Inspector created from those definitions (click on each screenshots to enlarge):

Processing of XML data sources

Any number of input XML files with different structure

A template application may process (take data from) any number of XML files with different structures (e.g. WSDL+XSD). The input XML files can be both specified initially as the generator arguments and also loaded dynamically by the templates according to the data being processed.

All XML files as a single virtual XML document

All open XML files are represented together in the form of a single tree structure (similar to XML DOM). That virtual representation, called XML DSM (or XML Data Source Model), in turn, consists of abstract DSM elements and DSM attributes. Some of them mirror real XML elements and attributes found in the open XML files. Others (called pseudo-elements) represent all kinds of non-element/attribute nodes found in XML DOM (such as TEXT-nodes, XML comments, processing instructions etc.) as well as each XML file as a whole. On top of the tree is a special pseudo-element #DOCUMENTS that represents all XML files together.

In the whole FlexDoc.XYZ context, the XML DSM is a single unified representation of the entire multi-files XML data source, with which a particular template application works. It is created and maintained by the XML DSM Driver, a FlexDoc/XML module, which takes on inputs XML files and converts them into the branches of the XML DSM tree.

XML Schema-driven processing

W3C XML schemas play crucial role in processing of input XML files.

Each template application is designed for a certain set of XML schemas, which describe all possible XML files the application may process (except some trivial cases, for instance, the reproducing of raw XML; see XMLDoc).

During the processing each input XML file is associated with some of those XML schemas and each XML element becomes uniquely connected to a certain <xs:element> from it. That is used to:

The collection of XML schemas, on which the template application is based, constitutes an XML Type. In effect, this is a logical description of the whole XML DSM, which drives the entire processing.

XML Type is a description of particular type of XML files (e.g. WSDL files or XSD files), which a template application is designed to process. The XML type is assigned with a certain ID (e.g. 'wsdldoc'), through which it is associated with the templates. All information about the XML type is specified in an XML Type Configuration File that is typically provided along with the template set, e.g.:
{WSDLDoc}/templates/wsdldoc.xmltype
See also:

Example:

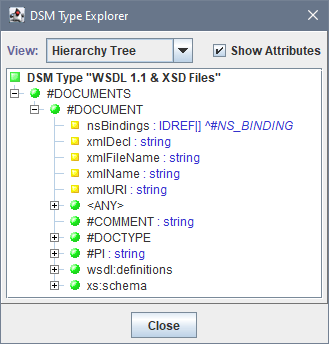

On this screenshot you can see a tree representation of the “WSDL 1.1 & XSD Files” XML Type. It describes any number of input WSDL/XSD file as a single data source, which is processed by the WSDLDoc template set (click to see a more expanded view).

This XML Type is based on the following XML schemas:

http://www.w3.org/2001/XMLSchema.xsd
http://schemas.xmlsoap.org/wsdl/
http://schemas.xmlsoap.org/wsdl/soap/
http://schemas.xmlsoap.org/wsdl/http/
http://schemas.xmlsoap.org/wsdl/mime/

The words “DSM Type” visible in the dialog actually mean “XML Type”. DSM Type is the same notion, but extended to any kind of DOM-like data sources provided by a Java API (XML files are covered by this as well). For instance, see: FlexDoc/Javadoc | Features | Doclet API as virtual XML document | Doclet DSM.

Data mining by Location Paths / Location Rules / Element Maps

Most of data mining and retrieval is based on Location Paths / Location Rules, which is a developed by us extension of XPath. This is complemented also with the specifically adapted hash-maps (called element maps) that serve the role of indexes.

Element maps are particularly important in finding XML elements referenced by qualified names (e.g. from various xs:QName attributes), which is typical, for instance, in XSD/WSDL files.

Example:

On the following screenshot you can see a set of Location Rules to collect ancestor types (i.e. XML elements representing them) for a Type Derivation Tree in XML schema documentation (click to enlarge):

Here, the Location Rules are specified among the properties of the Element Iterator section.

Each rule corresponds a particular type derivation method available in XSD. The rules are interpreted against a given XSD type, which produces a sequence of all ancestor types starting from that initial type itself (the first rule just includes it in the sequence). Then, the iterator prints the collected sequence in reverse order as a tree:

Custom elements

Custom Elements are structured chunks of data created dynamically by the template set. They are typically used to store some hard to obtain information about the actual things described in the input XML files. In effect, custom elements serve to cache computationally costly facts. So, their use may greatly improve the performance.

These objects are called elements because they are framed the same as ordinary DSM elements coming from the main data source (i.e. XML files). That allows manipulating them together with the ordinary elements using the same template functionality (e.g. iterating, sorting, grouping, attribute access etc).

Such fictional elements are described by Custom Element Types, which are defined in a special extra XML schema that comes along with the template set, e.g.:

{XSDDoc}/templates/xmltype/CustomElements.xsd
Those types are injected into the XML Type through the .xmltype configuration file found in the template set folder, e.g.:
{XSDDoc}/templates/xsddoc.xmltype
Then, they appear in FlexQuery Assistance Dialog invoked in the Template Designer (e.g. via the main menu: Help | Assistant) with the names start with '#'.

Support of XML catalogs

XML Catalogs are special XML files that define redirections of certain URLs/URIs to other URLs/URIs.

An XML file may contain references to other XML files, which are required for its processing (for instance, this is widely used in XML schemas). Those references are typically expressed as a file URL, which is the address where the file should be found. But the referenced file may not necessary exist at that address or the provided location is undesirable or impossible to access. There may be a local copy of the same file, which can be equally used. But how to tell the XML processor to use that local copy instead of the original one? When the XML processor is aware of an XML catalog containing a mapping of the original URL to the local one, the requested file will be automatically loaded from the new location.

FlexDoc/XML supports XML catalog files in OASIS XML Catalogs v1.1 format.

XML catalogs can be used in processing of input XML files, for which they should be specified with -xmlcatalog option or in a special dialog (part of the generator GUI):

Additionally, XML catalogs are used in definitions of XML Types based on multiple XML schemas (see xsd.catalogs config property).

For more details, please see: FlexDoc/XML | Documentation | Installation / Configuration Files | XML Catalogs

Formatting

WYSIWYG capabilities of template components

All formatting of the generated output is specified as properties of template components. In Template Designer, this is visualized in a form resembling the output those components generate.

On the following screenshot you can see how the generation of summary table is programmed:

In that way the following formatting features are supported:

During the generation, the formatting properties of components are rendered with appropriate features available in the selected output format.

Formatting styles

Formatting properties of template components can be defined and stored independently of components themselves, in special definitions called template formatting styles:

Basically, each template formatting style is a bunch of component formatting properties assigned with a certain name:

By that name the style can be assigned to a template component. When the component has a formatting style, those formatting properties not specified on the component directly are inherited from the style.

Formatting styles are template local things. That is, they are not imported from somewhere outside. However, when a template is called from another template, the styles defined in the caller template will override the equally named styles defined in the called one. When multiple templates are called one from another, that will work in a chain. So, the styles defined in the main template will override any equally named styles defined elsewhere. As a whole, formatting styles behave as additional template parameters passed implicitly by their names.

Custom CSS rules / CSS file

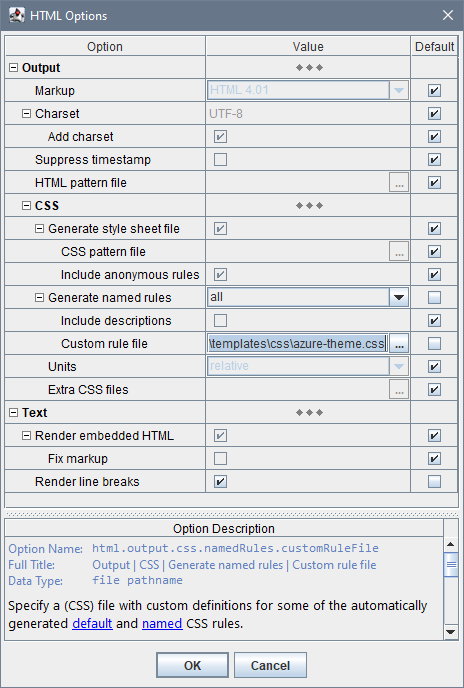

In case of HTML output, FlexDoc.XYZ support the traditional way of styling the generated documentation through the custom CSS style sheet. It is done via the named CSS rules generated from template formatting styles.

On these screenshots you can see the same documentation with default (left) and custom (right) CSS. Click on each screenshot to see the real HTML.

For further details, please see: FlexDoc.XYZ | Documentation | Usage of CSS in generated HTML

Processing of XHTML markup

The XHTML tags can be recognized at specific locations of XML documents (for instance, within <xs:documentation> elements of XSD files). This must be programmed entirely in a template, which converts all XHTML tags to normal HTML tags (e.g. by removing 'xhtml' namespace prefix from the tag names). Further, everything will be processed by the generator itself as embedded HTML.

This is a demo of what can be achieved by usage of XHTML in XML schema annotations. On the left you can see the XML source of an XML schema, whose annotations are heavily laden with XHTML markup (including insertion of images). On the right is the documentation generated by that schema. Click on each screenshot to see the actual HTML.

In this case, the XHTML tags are processed in XSDDoc/lib/ann/annotation.tpl template, which also takes care of images (inserted with <img> tags); they need to be copied to the documentation destination directory.

See also: FlexDoc/XML | XSDDoc | FAQ | Using HTML markup in annotations

Rendering of embedded HTML

This means interpreting in the generated output the user HTML/XHTML tags embedded in text data (e.g. annotations).

In case of HTML/XHTML output, little needs to be done (if only fixing wrong HTML markup or converting it to XHTML).

However, in case of RTF, the embedded HTML needs to be fully parsed and interpreted with the corresponding formatting features available in RTF, at that this everything must be integrated with the formatting imposed by the settings in templates. That is supported for almost all HTML tags practically usable in documentation comments (including inserting of images):

Text <span>, <b>, <strong>, <i>, <em>, <cite>, <code>, <tt>, <u>, <s>, <strike>, <sub>, <sup>, <font>, <br>
Paragraphs <div>, <p>, <center>, <pre>, <blockquote>, <h1>, <h2>, <h3>, <h4>, <h5>, <h6>
Lists <ul>, <ol>, <li>, <dl>, <dt>, <dd>
Table <table>, <caption>, <tbody>, <thead>, <tfoot>, <tr>, <th>, <td>
Other <hr>, <img>, <a>...</a>

Example:

These are screenshots taken from two RTF documentations generated by XML schemas with intensive usage of user XHTML markup in annotations.

On the left is the same XML schema as in the demo above. For comparison, the HTML version of the same page you can see here.

The XML schema on the right is this one: http://www.w3.org/2001/xml.xsd

Insertion of images

Static Images

When the image file is already known at the time of template design (e.g. various icons), it can be specified directly in the template using Image Control. Then, such an image is instantly displayed in the designer pane (along with other controls):

Dynamic Images

It is also possible that the image source becomes known only during the generation (according to the data being processed). This includes: Such images can be also inserted in the output using Image Controls.

Element Images

Some XML elements may have special depictions (e.g. charts, diagrams) attached to them. For instance, an element in XML schema file that defines a particular XSD component may be associated with a diagram showing the content model or the derivation of that component. Such depictions, called element images, can be easily inserted in the generated output using Image Control.

Element images are generated by a special interchangeable extension of the XML DSM Driver called Element Image Provider. Since element images are specific only to a particular type of data sources (e.g. XSD files), the Element Image Provider is effectively a part of the XML Type and specified as plugin in the XML Type configuration file with a property like this:
wsdldoc.imageProvider.name
Once activated, the Element Image Provider may register specific FlexQuery functions and properties, using which the template application may interact with it. That includes passing to it some data (extracted from the XML files) necessary to generate those diagrams as well as some additional settings (obtained from template parameters).

See also: Diagramming Plugins

Example:

On the left screenshot you can see diagram.tpl template (from XSDLDoc template set), which prints a component diagram section. The diagram is inserted in the output via the Image Control specified to generate “element image”. The right screenshot shows a piece of output produced by this template:

XHTML Images

Independently of what is specified about images in templates, they may come also from XHTML tags found in input XML files. When some XML elements (e.g. <xs:documentation> in XSD files) may include XHTML tags specifically processed by a given template set, images can be inserted using <img> tags.

Example:

<xs:annotation>
<xs:documentation xmlns="http://www.w3.org/1999/xhtml">
Mystic Flowers:
<p/>
<img src="http://www.flexdoc.xyz/images/flowers.png"/>
</xs:documentation>
</xs:annotation>

After processing such an annotation, the generator will produce the following fragment of HTML:

Mystic Flowers:

Supported Image Formats

Except DiagramKit, FlexDoc/XML generates no images by its own. Any images must either be prepared beforehand or come from various external sources. However, FlexDoc does need to read images in order to display them in Template Designer or, at least, to obtain some of their properties necessary to insert the image correctly in the generated output.

The following formats of incoming images are supported: GIF, PNG, JPG, WMF, EMF, BMP

Hypertext

Cross-Reference Links

Cross-links are produced by matching sets of special keys generated for both link source and destination (target). The keys represent actual data being linked. Their generation is specified in templates along with the generation of the corresponding pieces of output.

Example:

Suppose we need to generate a list of some components and link the list items to the corresponding component details:

The list is generated by a template section like the one shown below on the left screenshot. Each list item is produced by the Data Control (selected) specified to print the component name. The hyperlink generation is defined here in the Data Control's properties (right screenshot). It is determined by a pair of keys: {contextElement.id, "detail"}. The first key 'contextElement.id' represents the component itself (it's the unique ID of the DSM element representing the component). The second key is the string "detail". It says that what we want to link to is the component's entire details. This is needed because there may be other sections in the documentation dedicated to the same component, which may be linked to as well (including some subsections within the detail).

The component detail is generated by the template shown below (left screenshot). The link target is defined in the template properties (right screenshot). It's again determined by the same pair of keys: {contextElement.id, "detail"}.

Such definitions allow the generator to create hyperlinks automatically. Each time the sets of keys produced by some possible link source and destination are matching, the actual hyperlink is generated. In that way anything can be cross-linked together. At that, if a particular set of keys cannot be matched, an alternative set of keys can be specified as well. That means, when the primary target is absent, the link can go to some alternative location related to the link source.

External Links

Similar to cross-links can be programmed the generation of outgoing hyperlinks to any external URLs (left screenshot). The link URL is produced by an expression specified in the properties of the link definition (right screenshot):

The incoming hyperlinks from external pages into the generated documentation can be supported as well. Each hypertext target (anchor) is generated by a definition like shown below (left screenshot). It is specified in the properties of the component whose output is targeted. Typically, the anchor name is generated automatically and, therefore, meaningless. But it can be any predefined string generated by an expression specified in the properties of the target definition (right screenshot below), which can be used in the URL of the incoming link.

Element Image Maps

As element images are typically diagrams, they may require a complex set of hyperlinks assigned to particular image areas. That is called image map.

Generic image maps, which associate the image areas with particular DSM elements (representing something depicted in those areas), come from the data source along with the element images themselves. But those associations need to be converted into actual hyperlinks going to the corresponding sections of the documentation.

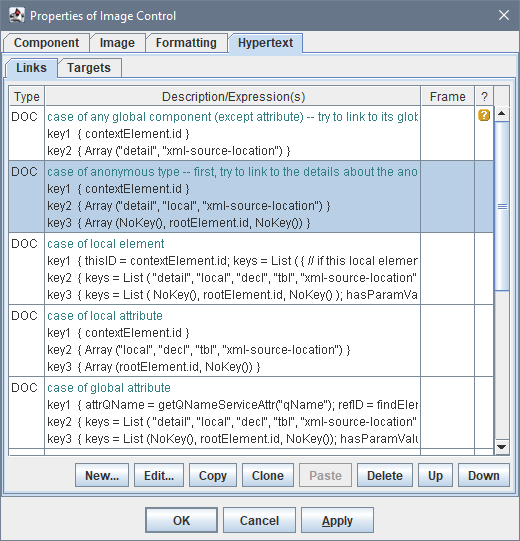

That is programmed in properties of the Image Control (that inserts the element image) as shown on the screenshot.

It looks the same as a definition of ordinary cross-link. The difference is that it is interpreted against every image area, so that the DSM elements associated with that area is made the generator context element and the hyperlink is generated by it. In that way each image area gets its actual hyperlink.

Hyperlinks in Different Output Formats

Basically, hyperlinks can be generated in all output formats (included even plain text). However, there are some specifics:

Format What's special
HTML Hyperlink Title

It is a small text generated by a “Link Tile” expression specified in the properties of the hyperlink definition. In HTML, hyperlink titles are set using title attribute, like this:

<a ... title="link tooltip text"> ... </a>

Most browsers interpret it as a hyperlink tooltip (a tiny window with the text that appears near the hyperlink when the mouse cursor is moved over it):

RTF Page Number References

RTF supports similar hyperlinks as HTML. But this is good in electronic form. Once you have printed something on paper, you cannot click on it. So, how to navigated the printed documentation?

In RTF, cross-links can be represented also in the form of page number references, which is programmed as follows.

A Data Control is specified in a template:

to generate a “Page Number” document field:

The hypertext tab is specified the same as in case of cross-link:

The page number of the link's target will be shown like: link text[page number]. The generated RTF will look as on these pages (click to enlarge):
TXT See: Images and hyperlinks in plain-text output

Output formats

HTML 4.01 / XHTML 1.0

Both framed multi-file and single-file output can be generated. Almost all formatting is expressed with CSS. It is possible also to replace some of the generated CSS rules with custom ones (see FlexDoc.XYZ | Documentation | Usage of CSS in generated HTML).

RTF

version 1.6 - supported since Word 2000; can be further converted to PDF

TXT (plain text)

You can use plain-text output to generate documentation (or any other sort of output) in formats not supported directly by FlexDoc.

That is possible only when such a format is eventually plain-text based (not binary). But that's the case for probably all modern formats (e.g. TeX, DITA, JSON etc). Of course, you will need to specify in templates all necessary markup (tags, control words etc.) specific for that format.

Images and hyperlinks in plain-text output
It may sound odd. What images and hyperlinks can exist in plain-text files?

Yet, plain-text output may be just a base layer for other file formats, for instance DITA, which is an XML-based markup. There, both images and hyperlinks do exist and are required.

The following functionality will allow you to use plain-text output capability of FlexDoc/XML to generate some full-blown complex formats even when they are not supported by FlexDoc/XML directly.

Images

In plain-text mode, an Image Control will produce the same image file (according to its setting). However, in addition, it also emits into the main output the image file's relative pathname. That pathname is calculated against the main file's location and the name-separator is UNIX style ("/"). In a template, you can surround the Image Control with other Text Controls generating some markup, so everything would produce both the image file and the image tag for it in the main output.

Hyperlinks

You can generate cross-hyperlinks in plain-text files too. This equally includes the hyperlinks from images (the imagemaps).

What exactly a hyperlink is depends on the final format you generate using the plain-text output. FlexDoc/XML just provides the necessary functionality to find the things you want to link from and to. This is implemented in the form of new FlexQuery functions and GOM types/properties ("GOM" stands for Generator Object Model):

Function/Type/Property Description
findHyperTarget() Finds a hyperlink target matching the specified set of keys that may exist anywhere in the whole generated documentation. Returns a GOMHyperTarget object describing the target.
GOMHyperTarget Provides information about a hyperlink target. This includes the output file containing the target and the target name.
getElementImageMapAreas() Returns all hypertext imagemap areas of the element image associated with the specified element. The function returns an array of GOMImageMapArea objects.
GOMImageMapArea Represents a single area in the hypertext imagemap of an element image. This includes the area bounds (rectangle) and the referenced GOMElement.
GOMElement.hasImage Indicates whether the element has a certain image representation (element image).

More information about these functions and types you can find in the Template Designer | Help | Assistant:

Generator GUI

Why generator GUI?

A documentation generator implemented as {FlexDoc/XML Generator + template set} is controlled by a lot of settings, which include: Of course, all such settings can be assigned using options on the generator command line (most, actually, have their default values). But there may be so many of them!

So, besides command line options, FlexDoc/XML Generator provides a more user-friendly way to specify everything interactively – the Generator GUI.

Generator Dialog

When no -nodialog option is specified on the generator command line, by default, the following Generator Dialog is invoked (click to enlarge):

Here, you can fill in all required settings.

The «Params» button invokes the Parameter Inspector, where you can edit all parameters of the specified main template.

In a special dialog invoked by the «Catalog» button, you can add XML catalogs that will be used during processing of input XML file(s).

The «Options» button invokes the Option Inspector corresponding the selected Output format.

When all settings are prepared, you can start the generation by clicking «Run» button. Then, the generator dialog will transform itself to show the generation progress.

You can stop the generation at any moment by clicking «Cancel» button.

Once the generation has finished (or cancelled), the generator dialog transforms itself back into its initial state.

Template Parameter / Output Format Option Inspectors

The additional settings, such as template parameters and output format options can be assigned in the special property inspector dialogs invoked by clicking the buttons on the right (click to enlarge):

Here you can edit the parameter or option values according to their data types. The bottom panel in the inspector dialog shows the HTML-preformatted description of each parameter or format-specific generator option.

For further details, please see: FlexDoc/XML | Documentation | Running Generator | Generator GUI

Ready template applications

XMLDoc

Allows you to compile any number of generic XML files into a web-ready HTML or printable RTF documentation with the optional inclusion of a namespace binding report that shows which namespace prefixes are bound to which namespace URIs and where.

On the left screenshot you can see a demo documentation generated with XMLDoc (click to view the real HTML).

For further details, please see: FlexDoc/XML | Sample | XMLDoc

XSDDoc

Implements a very powerful XML Schema Documentation Generator able to produce both multi-framed Javadoc-like HTML and printable RTF documentation.

It supports also the integrations with both XMLSpy and Oxygen XML Editor, which allow you to insert automatically the XSD diagrams produced by either of those systems into the XML schema documentation generated by XSDDoc (with the full support of diagram hyperlinks).

On the left screenshot you can see a demo documentation generated with XSDDoc (click to view the real HTML).

For further details, please see: FlexDoc/XML | XSDDoc

WSDLDoc

This template set implements a combined WSDL/XSD documentation generator that will allow you to document both WSDL and XML schema (XSD) files as well as any interconnections between them.

It supports also the integrations with both XMLSpy and Oxygen XML Editor, which automatically insert the XSD diagrams produced by either of those systems into the documentation generated by WSDLDoc (with the full support of diagram hyperlinks).

On the left screenshot you can see a demo documentation generated with WSDLDoc (click to view the real HTML).

For further details, please see: FlexDoc/XML | WSDLDoc

Diagramming Plugins

Diagramming plugins are extensions of FlexDoc/XML to generate graphical representations (i.e. charts, diagrams) of various things described in XML files. Effectively, these are functional extensions of particular template applications that supplement the textual documentation generated by them with specific diagrams.

The support of diagrams comes from the concept of element images. This are the images associated with particular XML elements and supplied by Element Image Provider. The insertion of such images in the output (along with the generation of hyperlink image maps) can be easily programmed in templates using Image Controls.

Diagramming plugins are particular implementations of Element Image Provider. Since FlexDoc/XML itself is mostly about data-mining in XML files and generating some human-readable texts from the found results, it has little intersection with diagramming. So, generation of any diagrams needs to be implemented separately for every particular documentation task, where they are required.

See also: Element Images

DiagramKit

DiagramKit is the FlexDoc/XML native diagramming engine (independent on any third-party software). It is included in FlexDoc/XML and will work by default.

Currently it is able to generate XSD diagrams (similar to those produced by XMLSpy) and insert them automatically into the documentation generated by XSDDoc/WSDLDoc (with the full support of diagram hyperlinks).

On the left you can see an XML schema documentation with XSD diagrams generated by DiagramKit (click on the screenshot to view the real HTML).

For more details, please see: FlexDoc/XML | DiagramKit.

XMLSpy Integration

The integration of FlexDoc/XML with Altova XMLSpy (see http://www.altova.com/xmlspy/) allows you to automatically insert graphic diagrams produced by XMLSpy into the documentation generated by XSDDoc/WSDLDoc (with the full support of diagram hyperlinks).

On the left you can see an XML schema documentation with XSD diagrams generated by XMLSpy (click on the screenshot to view the real HTML).

For more details, please see: FlexDoc/XML | Integrations | XMLSpy.

OxygenXML Integration

The integration of FlexDoc/XML with Oxygen XML Editor (see http://www.oxygenxml.com) allows you to automatically insert graphic diagrams produced by OxygenXML into the documentation generated by XSDDoc/WSDLDoc (with the full support of diagram hyperlinks).

On the left you can see an XML schema documentation with XSD diagrams generated by OxygenXML (click on the screenshot to view the real HTML).

For more details, please see: FlexDoc/XML | Integrations | Oxygen XML.

Other Integrations

Apache Ant

You can easily integrate FlexDoc/XML generator (template interpreter) with Apache Ant automated build system. No special plugin is required! For more details, please see: FlexDoc/XML | Integrations | Apache Ant.

Apache Maven

You can equally run FlexDoc/XML generator from your Maven build. For this, there is a special “FlexDoc/XML Maven Plugin”. For more details, please see: FlexDoc/XML | Integrations | Apache Maven.

Docker

...
