element <xsl:template> (global)
Namespace:
http://www.w3.org/1999/XSL/Transform
Type:
anonymous complexType (extension of xsl:versioned-element-type)
Content:
mixed (allows character data), 11 attributes, attr. wildcard, 4 elements, 2 elem. wildcards
Subst.Gr:
may substitute for element xsl:declaration
Defined:
globally in schema-for-xslt20.xsd; see XML source
Includes:
definitions of 5 attributes, 1 element
Used:
never

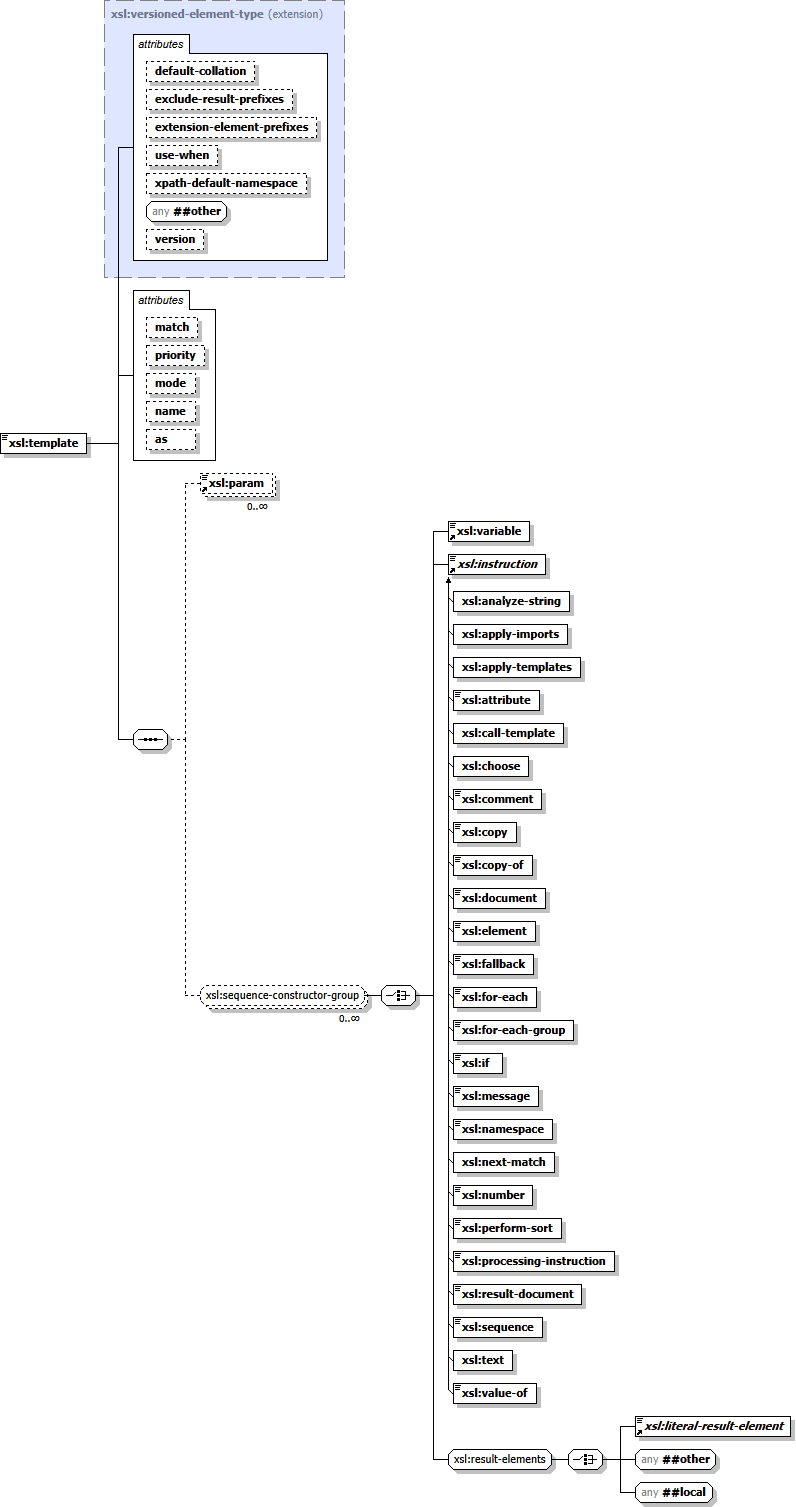

Content Model Diagram
XML Representation Summary
<xsl:template

default-collation
 =
 list of xs:anyURI
exclude-result-prefixes
 =
 (list of (xs:NCName | "#default") | "#all")
extension-element-prefixes
 =
 list of (xs:NCName | "#default")
use-when
 =
 xs:token
xpath-default-namespace
 =
 xs:anyURI
version
 =
 xs:decimal
match
 =
 xs:token
priority
 =
 xs:decimal
mode
 =
 (list of (xs:Name | "#default") | "#all")
name
 =
 xs:Name
as
 =
 xs:token : "item()*"
    {any attribute with non-schema namespace}
    >

Content:
 {text} × (xsl:param*, (xsl:variable | xsl:instruction | xsl:literal-result-element | {any} | {any})*)
</xsl:template>
May contain elements by substitutions (25):
xsl:analyze-string, xsl:apply-imports, xsl:apply-templates, xsl:attribute, xsl:call-template, xsl:choose, xsl:comment, xsl:copy, xsl:copy-of, xsl:document, xsl:element, xsl:fallback, xsl:for-each, xsl:for-each-group, xsl:if, xsl:message, xsl:namespace, xsl:next-match, xsl:number, xsl:perform-sort, xsl:processing-instruction, xsl:result-document, xsl:sequence, xsl:text, xsl:value-of
May be included in elements by substitutions (2):
xsl:stylesheet, xsl:transform
Anonymous Type Detail
Type Derivation Tree
xsl:generic-element-type (extension)
  xsl:versioned-element-type (extension)
      complexType
XML Source (see within schema source)
<xs:element name="template" substitutionGroup="xsl:declaration">
<xs:complexType>
<xs:complexContent mixed="true">
<xs:extension base="xsl:versioned-element-type">
<xs:sequence>
<xs:element maxOccurs="unbounded" minOccurs="0" ref="xsl:param"/>
<xs:group maxOccurs="unbounded" minOccurs="0" ref="xsl:sequence-constructor-group"/>
</xs:sequence>
<xs:attribute name="match" type="xsl:pattern"/>
<xs:attribute name="priority" type="xs:decimal"/>
<xs:attribute name="mode" type="xsl:modes"/>
<xs:attribute name="name" type="xsl:QName"/>
<xs:attribute default="item()*" name="as" type="xsl:sequence-type"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
</xs:element>
Attribute Detail (all declarations; defined within this component only; 5/12)
as
Type:
xsl:sequence-type
Use:
optional
Attribute Value
xs:token
Pattern:
 .+
Default:
"item()*"
XML Source (see within schema source)
<xs:attribute default="item()*" name="as" type="xsl:sequence-type"/>
match
Type:
xsl:pattern
Use:
optional
Attribute Value
xs:token
Pattern:
 .+
XML Source (see within schema source)
<xs:attribute name="match" type="xsl:pattern"/>
mode
Type:
xsl:modes
Use:
optional
Attribute Value
list of (xs:Name | "#default") | "#all"
XML Source (see within schema source)
<xs:attribute name="mode" type="xsl:modes"/>
name
Type:
xsl:QName
Use:
optional
Attribute Value
xs:Name
Pattern:
 ([^:]+:)?[^:]+
XML Source (see within schema source)
<xs:attribute name="name" type="xsl:QName"/>
priority
Type:
xs:decimal
Use:
optional
XML Source (see within schema source)
<xs:attribute name="priority" type="xs:decimal"/>
Content Element Detail (all declarations; defined within this component only; 1/6)
xsl:param
Type:
anonymous complexType (extension of xsl:sequence-constructor), mixed content
XML Source (see within schema source)
<xs:element maxOccurs="unbounded" minOccurs="0" ref="xsl:param"/>
