element <xsl:attribute> (global)
Namespace:
http://www.w3.org/1999/XSL/Transform
Type:
anonymous complexType (extension of xsl:sequence-constructor)
Content:
mixed (allows character data), 12 attributes, attr. wildcard, 3 elements, 2 elem. wildcards
Subst.Gr:
may substitute for element xsl:instruction
Defined:
globally in schema-for-xslt20.xsd; see XML source
Includes:
definitions of 6 attributes
Used:
at 1 location

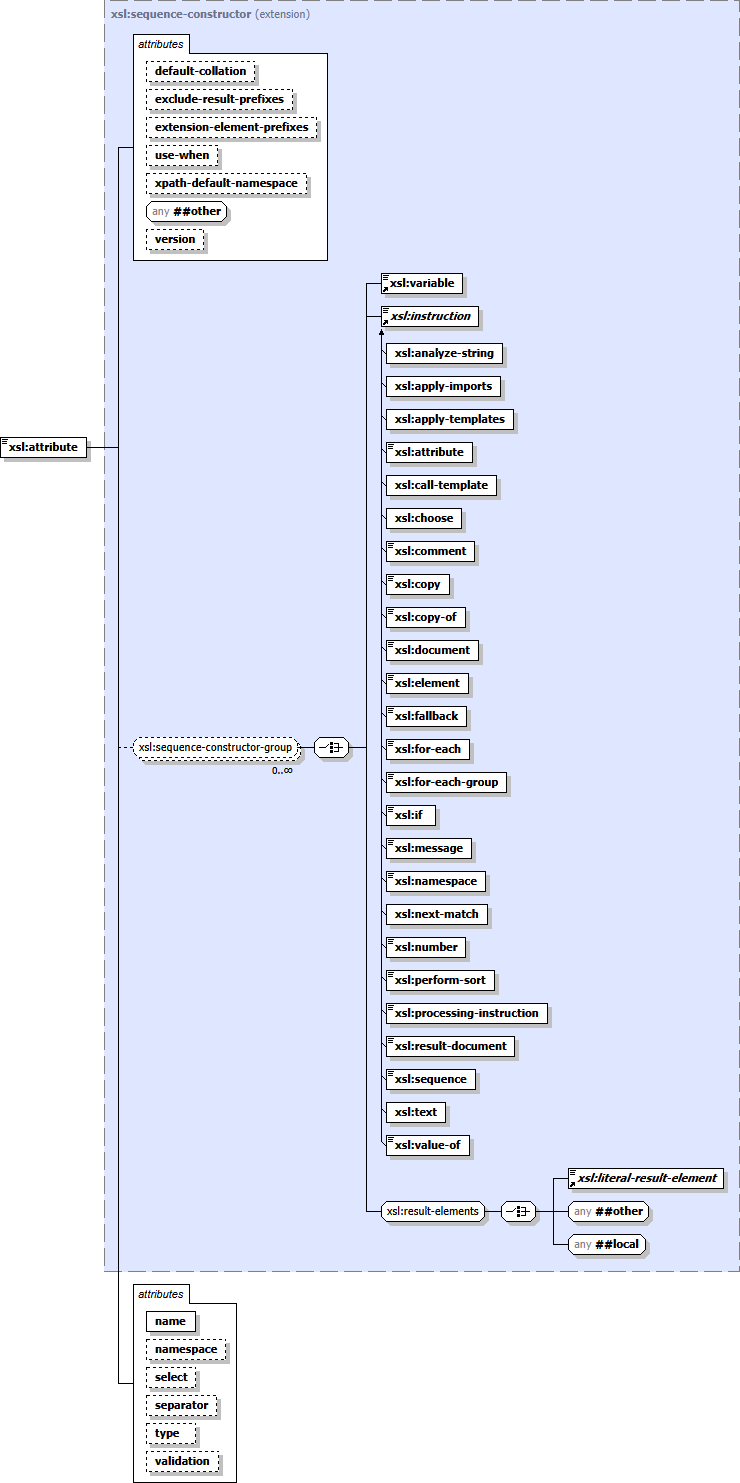

Content Model Diagram
XML Representation Summary
<xsl:attribute

default-collation
 =
 list of xs:anyURI
exclude-result-prefixes
 =
 (list of (xs:NCName | "#default") | "#all")
extension-element-prefixes
 =
 list of (xs:NCName | "#default")
use-when
 =
 xs:token
xpath-default-namespace
 =
 xs:anyURI
version
 =
 xs:decimal
name
 =
 xs:string
namespace
 =
 xs:string
select
 =
 xs:token
separator
 =
 xs:string
type
 =
 xs:Name
validation
 =
 ("strict" | "lax" | "preserve" | "strip")
    {any attribute with non-schema namespace}
    >

Content:
 {text} × (xsl:variable | xsl:instruction | xsl:literal-result-element | {any} | {any})*
</xsl:attribute>
Included in content model of elements (1):
xsl:attribute-set
May contain elements by substitutions (25):
xsl:analyze-string, xsl:apply-imports, xsl:apply-templates, xsl:attribute, xsl:call-template, xsl:choose, xsl:comment, xsl:copy, xsl:copy-of, xsl:document, xsl:element, xsl:fallback, xsl:for-each, xsl:for-each-group, xsl:if, xsl:message, xsl:namespace, xsl:next-match, xsl:number, xsl:perform-sort, xsl:processing-instruction, xsl:result-document, xsl:sequence, xsl:text, xsl:value-of
May be included in elements by substitutions (26):
xsl:attribute, xsl:comment, xsl:copy, xsl:document, xsl:element, xsl:fallback, xsl:for-each, xsl:for-each-group, xsl:function, xsl:if, xsl:key, xsl:matching-substring, xsl:message, xsl:namespace, xsl:non-matching-substring, xsl:otherwise, xsl:param, xsl:perform-sort, xsl:processing-instruction, xsl:result-document, xsl:sort, xsl:template, xsl:value-of, xsl:variable, xsl:when, xsl:with-param
Known Usage Locations
Anonymous Type Detail
Type Derivation Tree
xsl:generic-element-type (extension)
  xsl:versioned-element-type (extension)
      xsl:sequence-constructor (extension)
          complexType
XML Source (see within schema source)
<xs:element name="attribute" substitutionGroup="xsl:instruction">
<xs:complexType>
<xs:complexContent mixed="true">
<xs:extension base="xsl:sequence-constructor">
<xs:attribute name="name" type="xsl:avt" use="required"/>
<xs:attribute name="namespace" type="xsl:avt"/>
<xs:attribute name="select" type="xsl:expression"/>
<xs:attribute name="separator" type="xsl:avt"/>
<xs:attribute name="type" type="xsl:QName"/>
<xs:attribute name="validation" type="xsl:validation-type"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
</xs:element>
Attribute Detail (all declarations; defined within this component only; 6/13)
name
Type:
xsl:avt
Use:
required
Attribute Value
xs:string
XML Source (see within schema source)
<xs:attribute name="name" type="xsl:avt" use="required"/>
namespace
Type:
xsl:avt
Use:
optional
Attribute Value
xs:string
XML Source (see within schema source)
<xs:attribute name="namespace" type="xsl:avt"/>
select
Type:
xsl:expression
Use:
optional
Attribute Value
xs:token
Pattern:
 .+
XML Source (see within schema source)
<xs:attribute name="select" type="xsl:expression"/>
separator
Type:
xsl:avt
Use:
optional
Attribute Value
xs:string
XML Source (see within schema source)
<xs:attribute name="separator" type="xsl:avt"/>
type
Type:
xsl:QName
Use:
optional
Attribute Value
xs:Name
Pattern:
 ([^:]+:)?[^:]+
XML Source (see within schema source)
<xs:attribute name="type" type="xsl:QName"/>
validation
Type:
xsl:validation-type
Use:
optional
Attribute Value
enumeration of xs:token
Enumeration:
 "strict", "lax", "preserve", "strip"
XML Source (see within schema source)
<xs:attribute name="validation" type="xsl:validation-type"/>
