element <xs:schema>

Namespace:	http://www.w3.org/2001/XMLSchema
Type:	anonymous complexType (extension of xs:openAttrs)
Content:	complex, 8 attributes, attr. wildcard, 12 elements
Block:	"#all" (blocks all substitutions of this element or its type)
Defined:	globally in XMLSchema.xsd; see XML source
Includes:	declarations of 8 attributes, 5 elements
Referenced:	never

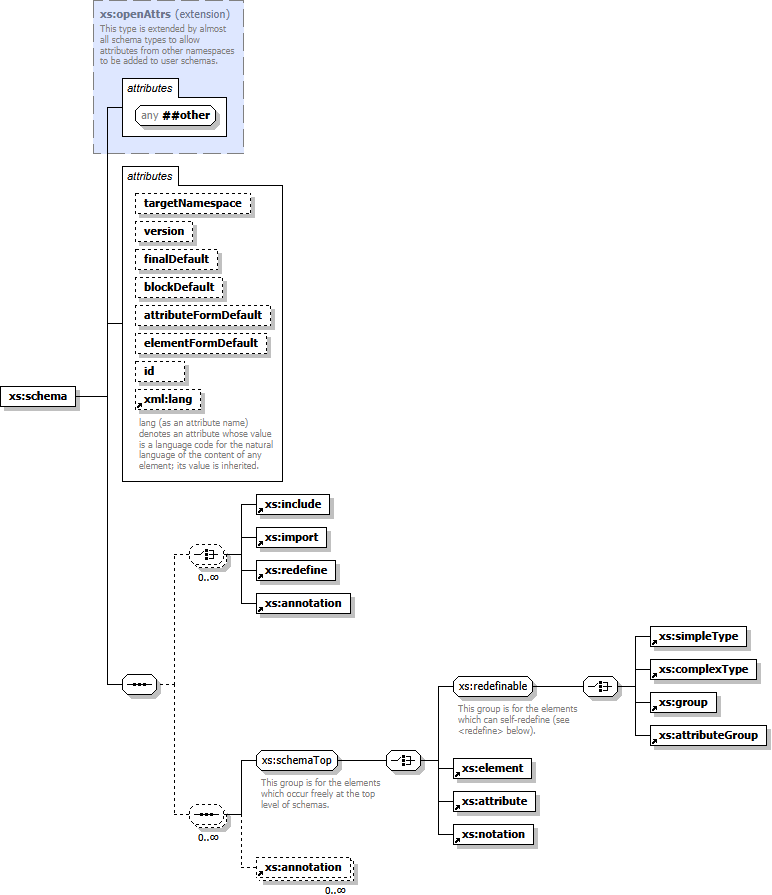

Component Diagram

Attributes:

Name	Type / Value	Default	Required?	Declared In	Description
targetNamespace	xs:anyURI		no	this
version	xs:token		no	this
finalDefault	xs:fullDerivationSet : ("#all" \| list of ("extension" \| "restriction" \| "list" \| "union"))		no	this
blockDefault	xs:blockSet : ("#all" \| list of ("extension" \| "restriction" \| "substitution"))		no	this
attributeFormDefault	xs:formChoice : ("qualified" \| "unqualified")	"unqualified"	no	this
elementFormDefault	xs:formChoice : ("qualified" \| "unqualified")	"unqualified"	no	this
id	xs:ID		no	this
xml:lang	anonymous : (xs:language \| "")		no	this	lang (as an attribute name) denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. »
{any attribute}	from non-schema namespace			xs:openAttrs

Content Element Model:

Description

Anonymous Type Detail

Type Derivation Tree

xs:anyType (restriction)
