complexType "xs:topLevelElement"

XSD Documentation Demo

Demo Release 0.0

Namespace:	http://www.w3.org/2001/XMLSchema
Derived By:	restriction of xs:element
Content:	complex, 10 attributes, attr. wildcard, 6 elements
Block:	"#all" (blocks all substitutions of this complex type through xsi:type attribute in instance XML documents)
Defined:	globally in XMLSchema.xsd; see XML source
Includes:	declarations of 1 attribute, attr. wildcard, 3 elements; 4 attr. prohibitions
Referenced:	by 1 location

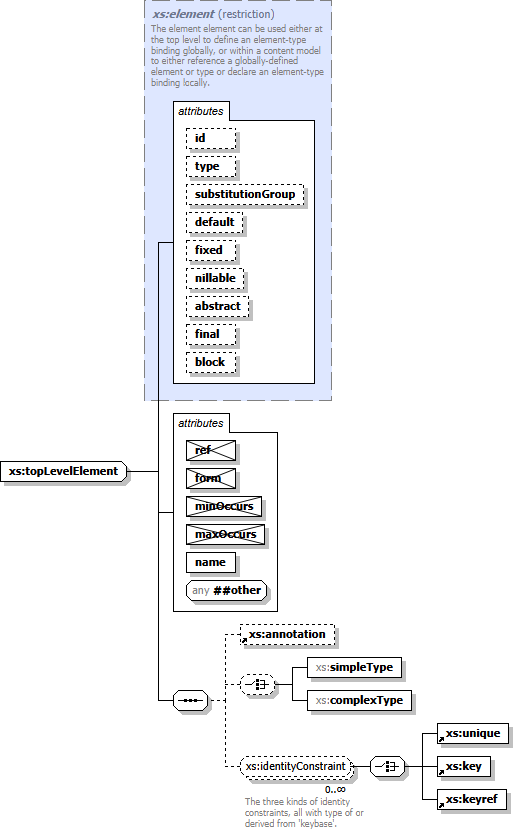

Component Diagram

Attributes:

Name	Type / Value	Default	Required?	Declared In	Description
id	xs:ID		no	xs:annotated
type	xs:QName		no	xs:element
substitutionGroup	xs:QName		no	xs:element
default	xs:string		no	xs:element
fixed	xs:string		no	xs:element
nillable	xs:boolean	"false"	no	xs:element
abstract	xs:boolean	"false"	no	xs:element
final	xs:derivationSet : ("#all" \| list of ("extension" \| "restriction"))		no	xs:element
block	xs:blockSet : ("#all" \| list of ("extension" \| "restriction" \| "substitution"))		no	xs:element
name	xs:NCName		yes	this
{any attribute}	from non-schema namespace			this

Content Element Model:

Related Components

Referenced By

Type Definition Detail

Type Derivation Tree

xs:anyType (restriction)

xs:element (restriction)
